Intelligent automation continues to change the way processes and information are managed, driving advancements like machine learning, sensors, and computing power to fuel integration.

Samtec's high-performance and rugged solutions combined with exceptional Sudden Service® support the spectrum of industrial applications producing unprecedented efficiency and quality in the market today.

Back to Top
Samtec logo

Samtec Logo

Discover Brochures Title

Discover Samtec's Solutions with these Brochures

Solutions row 1

Industrial Automation

industrial automation collage
Manufacturing efficiencies are rising with integrated network infrastructures, turning real-time factory data into actionable insights. Automation systems like PLCs, HMIs, and sensors rely on Samtec’s high-performance interconnects for secure, reliable connections.

Autonomous Robotics

robotic machinery
Autonomous robots streamline supply chains with speed and accuracy. With AI, they enhance decision-making for data collection, cutting costs and boosting productivity. Samtec’s micro rugged, high-density interconnects ensure reliable communication and power in tough environments.

Embedded Vision

industrial machinery
Embedded vision enhances industrial systems with precise, real-time data for quality and consistency. Designed for specific tasks, it captures, analyzes, and informs decisions. Samtec’s rugged, high-speed interconnects ensure reliable performance in compact, high-vibration camera modules.

Solutions row 2

Industrial Internet of Things

industrial IoT collage
IIoT boosts efficiency with AI-driven data, predictive analytics, and smart machines, streamlining industrial processes. It reduces downtime, enhances quality control, and improves asset tracking. Samtec’s rugged, high-speed interconnects ensure reliable, scalable connectivity in critical IIoT systems.

Smart Cities, Grids & Factories

digitally connected city
Smart cities, grids, and factories use multidirectional data networks to enhance efficiency and competitiveness. Wireless connectivity enables real-time control, automation, and AI integration. Samtec’s high-speed solutions ensure reliable, flexible support for these evolving systems.


Searay Intro

Featured Solutions

SEARAY™    |    Razor Beam™    |    Tiger Eye™     |    Edge Rate®

Generate®     |    High Reliability    |    Micro Mate™     |    mPOWER®

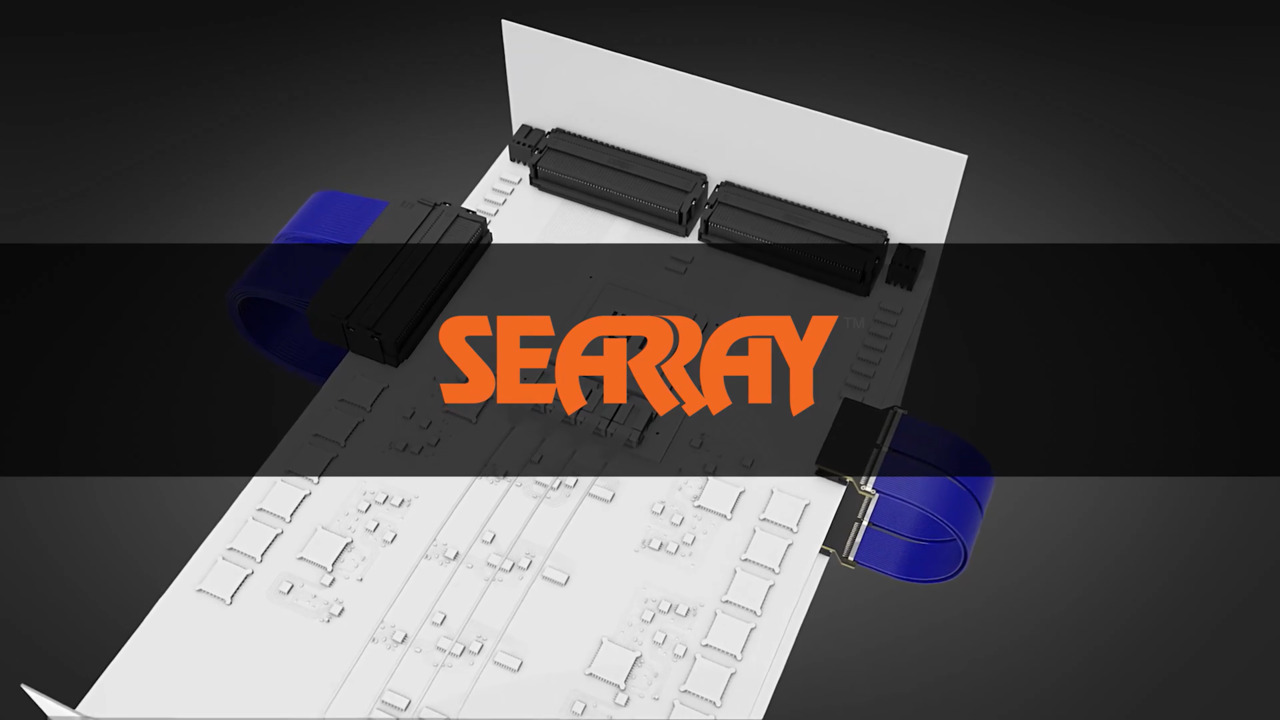

SEARAY™ High-Density Open-Pin-Field Arrays

Samtec's SEARAY™ products are the industry's largest offering of high-speed, high-density open-pin-field arrays. They support 56 Gbps PAM4 applications and are also Final Inch® certified for Break Out Region trace routing recommendations to save designers time and money.

SEARAY High-Density Open-Pin-Field Arrays

  • .050" (1.27 mm) pitch
  • 56 Gbps PAM4 performance
  • Stack heights from 7 mm to 18.5 mm
  • Up to 500 I/Os
  • Rugged Edge Rate® contact
  • Lower insertion/withdrawal forces
  • Solder charge termination
  • Analog Over Array™ capable
  • IPC-A-610F, acceptability of electronic assemblies – meets class 3 acceptability criteria for high-performance/harsh environment electronic products
  • IPC J-STD-001F, requirements for soldered electrical and electronic assemblies – meets class 3 acceptability criteria for high-performance/harsh environment electronic products
  • Severe Environment Tested (SET) qualified product proven for use in harsh/rugged environments
  • Extended Life Product™ certified to 5,000 cycles and 150º operating temperature with SureCoat™ palladium nickel with gold flash plating.
Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
    • Chapters
    • descriptions off, selected
    • captions off, selected

      View Brochure   |   View Catalog

      See SEAF Series

      See SEAM Series


      Razor Beam

      Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding

      Samtec's LSHM is a high-density, rugged connector for use in board-to-board and board-to-cable applications with optional shielding for EMI protection. Using the Razor Beam™ fine pitch contact system, the hermaphroditic design saves PCB real estate in the X, Y, and Z axes, and is rated at 14 Gbps per contact.

      Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip

      • .0197" (0.50 mm) pitch
      • 14 Gbps performance
      • Up to 100 I/Os
      • Ten stack height options from 5 mm to 12 mm
      • Current rating: 2.0 A max
      • Voltage rating: 160 VAC/ 226 VDC
      • Shielded option for EMI protection
      • Lubricated option available
      • Self-mating system reduces inventory cost
      • Parallel, perpendicular and coplanar systems
      • Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
      • Audible click when mated
      • Severe Environment Tested (SET) qualified product proven for use in harsh/rugged environments
      Video Player is loading.
      Current Time 0:00
      Duration 0:00
      Loaded: 0%
      Stream Type LIVE
      Remaining Time 0:00

      1x
        • Chapters
        • descriptions off, selected
        • captions off, selected

          View Brochure   |   View Catalog

          See LHSM Series

          See HLCD Series


          Tiger Eye

          High-Reliability, Rugged Tiger Eye™ Terminal and Socket Strips

          Samtec's Tiger EyeTM TFM/SFM Terminals and Sockets are designed for micro rugged, high-reliability, high-cycle applications. These Tiger EyeTM terminals and sockets feature multi-finger, heat-treated, Beryllium Copper (BeCu) contacts designed for rugged environments, and are available in vertical, right-angle, and horizontal orientations.

          Samtec's Tiger EyeTM TFM/SFM Terminals and Sockets

          • Pitch: .050" (1.27 mm)
          • Up to 8 Gbps performance
          • Up to 100 total pins
          • Single or double row
          • Multiple stack heights
          • Tiger EyeTM contact system
          • Shrouded body for blind mating
          • Orientation: Vertical, right-angle, horizontal
          • Termination: Through-hole, surface mount
          • Cable mate also available
          • Also Available: Screw down, weld tab and solder nail options available for most rugged requirements
          • Severe Environment Tested (SET) qualified product proven for use in harsh/rugged environments
          • Meets or exceeds MIL-DTL-55302 testing
          • Extended Life Product™ (E.L.P.™)

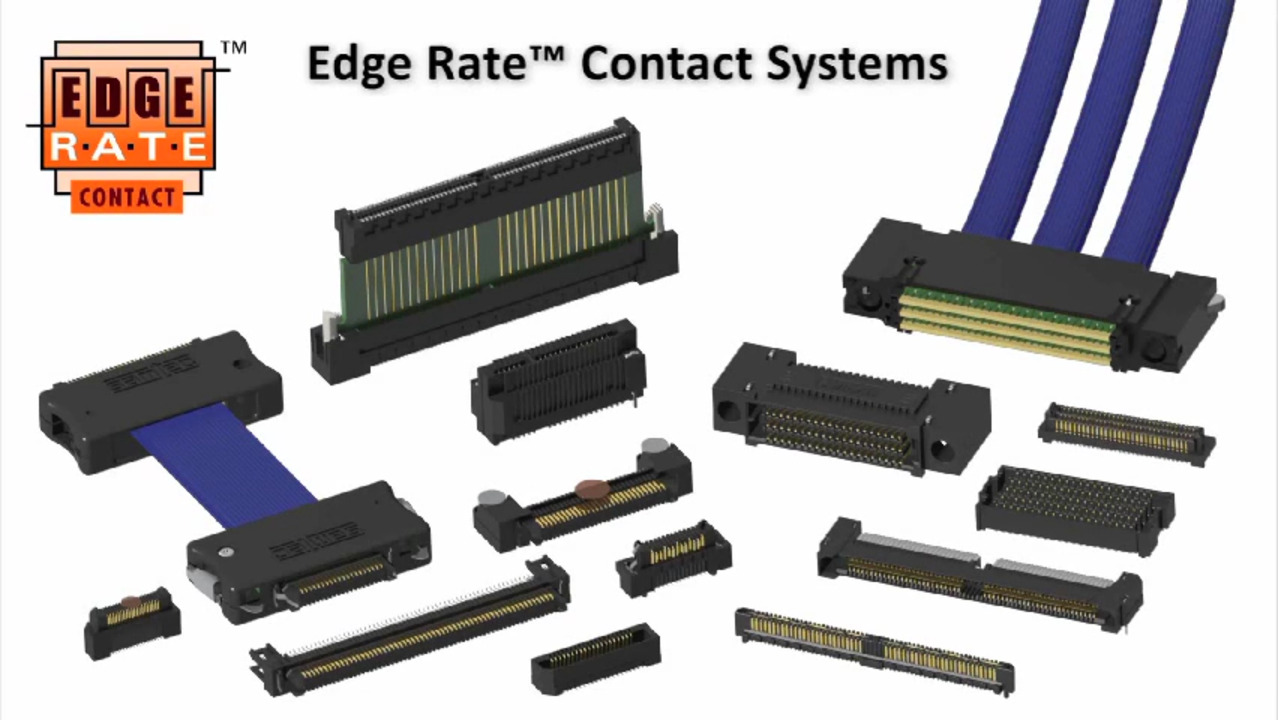

          Edge Rate

          Edge Rate® Rugged, High-Speed Terminal and Socket Strips

          Samtec’s ERF8/ERM8 series use the Edge Rate® contact system that is designed for high speed, high cycle applications. The surface of the Edge Rate® contact is milled creating a smooth mating surface area instead of a stamped contact that mates on a cut edge. This smooth mating surface reduces the wear tracks on the contact increasing the durability and cycle life of the contact system. It also lowers insertion and withdrawal forces allowing the connectors to be zippered when unmating.

          Edge Rate® Rugged, High-Speed Terminal and Socket Strips

          • .0315" (0.80 mm) pitch
          • 56 Gbps PAM4 performance
          • Positions: Up to 200
          • Stack Height: 7 mm–18 mm
          • Rugged Edge Rate® contact
          • Smooth broad milled contact surface for increased wear life
          • 1.5 mm contact wipe
          • Latching, differential pair and extended guide post options
          • 360º shielding available (ERM8-S)
          • Current rating: 1.4 A max
          • High mating cycles to 1,000
          • Voltage rating: 225 VAC/318 VDC
          • Mating cable also available
          • Severe Environment Tested (SET) qualified product proven for use in harsh/rugged environments
          Video Player is loading.
          Current Time 0:00
          Duration 0:00
          Loaded: 0%
          Stream Type LIVE
          Remaining Time 0:00

          1x
            • Chapters
            • descriptions off, selected
            • captions off, selected

              View Brochure  |   View Catalog

              SEE ERF8 SERIES

              SEE ERM8 SERIES


              Generate High Speed

              Generate® High-Speed 0.80 mm Pitch Edge Card Sockets

              Samtec's Generate® 0.80 mm pitch edge card sockets feature Edge Rate® contacts optimized for signal integrity performance. Available in vertical, right-angle, edge mount, pass-through and power/signal combo for design flexibility.

              Generate® High-Speed 0.80 mm Pitch Edge Card Sockets

              • .0315" (0.80 mm) pitch
              • 28 Gbps NRZ performance; 56 Gbps PAM4 with HSEC8-PE series
              • Up to 200 contacts
              • Rugged Edge Rate® contacts
              • Card slot: 1.60 mm (.062")
              • Single-ended and differential pairs
              • Vertical, right-angle, edge mount
              • Optional board locks and cable latching features
              • Optional weld tab for mechanical strength
              • Mating twinax cable available

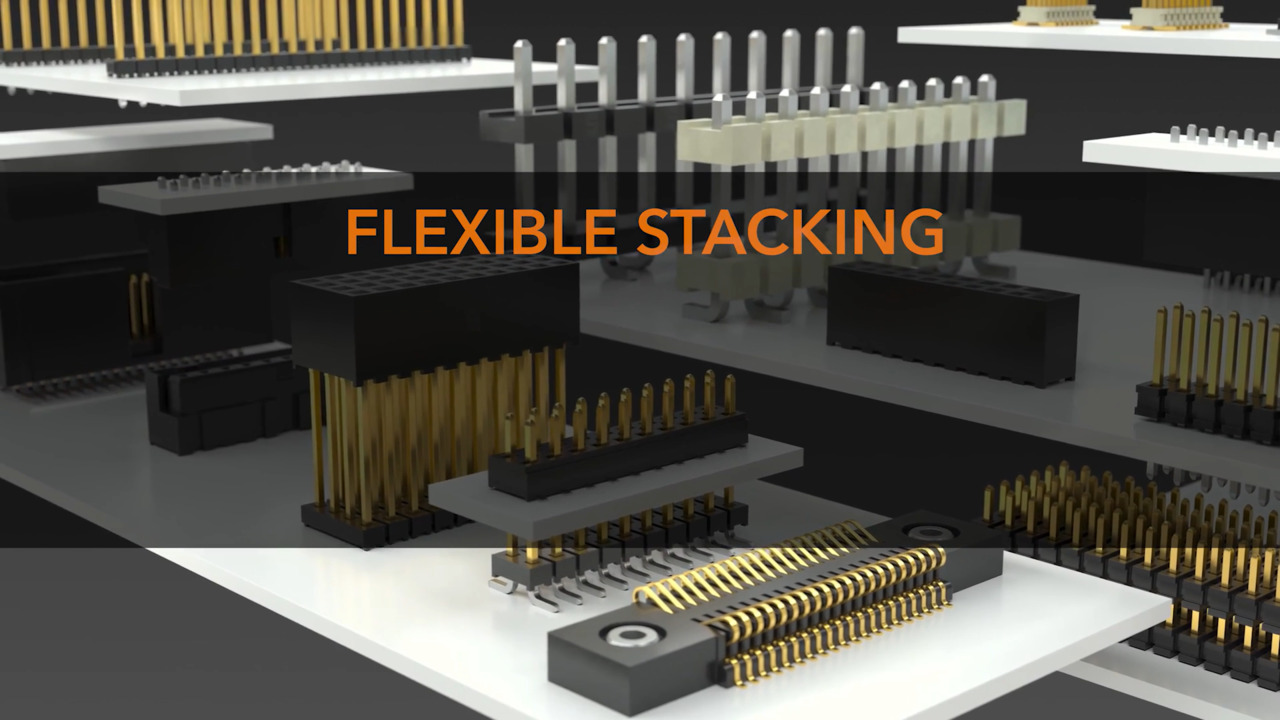

              High-Reliability

              High-Reliability .050" Pitch Header and Socket Strips

              Samtec Flexible Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. One of the more popular mated sets are the series of FTSH and CLP. These are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application.

              High-Reliability .050" Pitch Header and Socket Strips

              • .050" (1.27 mm) pitch
              • Up to 8 Gbps performance
              • Up to 100 contacts
              • Multiple post heights
              • Vertical and horizontal row configurations
              • Available in surface mount and through-hole
              • End shroud option available
              • Cost saving flash gold plating available
              • Meets or exceeds MIL-DTL-55302 testing
              • Severe Environment Tested (SET) qualified product proven for use in harsh/rugged environments
              • Extended Life Product™ (E.L.P.™)
              Video Player is loading.
              Current Time 0:00
              Duration 0:00
              Loaded: 0%
              Stream Type LIVE
              Remaining Time 0:00

              1x
                • Chapters
                • descriptions off, selected
                • captions off, selected

                  CLP Series Brochure

                  FTSH Series Brochure

                  SEE CLP SERIES

                  SEE FTSH SERIES


                  MicroMate

                  Micro Mate™ 1.00 mm Pitch Discrete Wire Cables & Connectors

                  Samtec’s Micro Mate™ discrete wire systems offer incredible space savings and design flexibility. Crimp-style dual leaf contacts provide a reliable connection in a slim, low profile design for cable-to-board, cable-to-cable and cable-to-panel applications.

                  Tooling is also available to help assemble components into complete cable assemblies. These range from simple hand tools for lower volume projects to applicators that can be used in bench top and automatic presses for larger volumes.

                  Micro Mate™ 1.00 mm Pitch Discrete Wire Cables & Connectors

                  • .0394" (1.00 mm) pitch
                  • Available as components with tooling or complete cable assemblies
                  • Cable-to-board, cable-to-cable and cable-to-panel applications
                  • 28 or 30 AWG
                  • Current rating: 2.7 A max
                  • Voltage rating: 250 VAC / 353 VDC max
                  • Rugged single or double latching for a solid connection
                  • Panel mount version fits .033”
                  • .090” panel thickness
                  • Crimp-style dual leaf contact system
                  • 2 through 20 total contacts (single row)
                  • 4 through 40 total contacts (double row)
                  • Teflon™ fluoropolymer wire available for high temp or halogen free applications
                  • Mating terminal strip available in vertical or horizontal surface mount

                  mPower

                  mPOWER® Ultra Micro 2.00 mm Pitch Power Connectors and Cable

                  Samtec’s mPOWER® connector system is the ultimate micro, high-power solution with incredible design flexibility in one product family for board-to-board, cable-to-board and cable-to-cable applications. Due to the wide variety of stack heights available, mPOWER® can be easily added to new or existing architectures. Discrete wire cable assemblies simplify board layout and deliver power directly to active components in the system.

                  mPOWER® Ultra Micro 2.00 mm Pitch Power Connectors and Cable

                  • .0787" (2.00 mm) pitch
                  • Up to 18 A per power blade
                  • Board-to-board, cable-to-board and cable-to-cable
                  • Choice of 2 to 10 positions
                  • 5 - 16 mm, 18 mm and 20 mm stack heights
                  • Optional weld tabs
                  • Tin or 10 µ" Gold plated power blades; 30 µ" Gold plating available to meet specific regulations
                  • Severe Environment Tested (SET) qualified product proven for use in harsh/rugged environments
                  • Mating cable available
