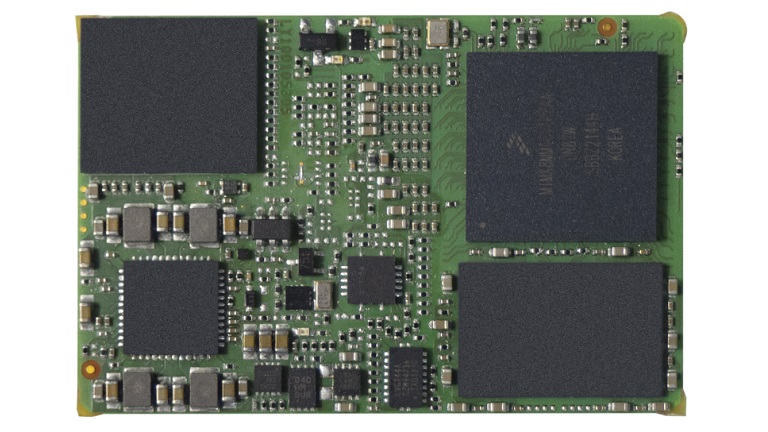

Tria MSC OSM-MF-IMX8NANO

The Tria MSC OSM-MF-IMX8NANO is based on the new OSM 1.1 standard (Size-M) “Medium” for completely machine processible low-cost embedded computer modules during soldering, assembly and testing.

Highly scalable and equipped with i.MX 8M Nano Application Processors, manufactured by NXP using 14nm FinFET process technology. The module integrates single-, dual- and quad-core ARM Cortex-A53 processors with up to 1.5 GHz, an ARM Cortex-M7 real-time processor and an efficient multimedia 2D/3D graphics processing unit (GPU). The thermal design power (TDP) ranges from 2 W to 4 W.

MSC OSM-MF-IMX8NANO provides fast and low power LPDDR4 memory technology, combined with up to 256GB eMMC Flash memory. Various interfaces for embedded applications such as Gigabit Ethernet (RGMII), USB 2.0, MIPI-DSI and MIPI CSI-2 (4-lane) for connecting a camera are available.

The module is compliant with the new OSM 1.1 standard (OSM-MF). For evaluation and design-in of the new OSM-MF-IMX8NANO module, MSC provides a development platform and a starter kit. A Yocto based Linux Board Support Package is available (Android support on request).

Key features

• Single, Dual or Quad core ARM Cortex-A53
• Applications processor up to 1.5GHz
• ARM Cortex-M7 real time processor up to 750MHz
• Vivante multimedia 2D/3D Graphics processor
• Up to 1GB LPDDR4 SDRAM
• Up to 256GB eMMC Flash
• MIPI-DSI x4
• MIPI CSI-2 (4-lane) camera interface
• 1x USB 2.0 Host/Device interface
• 1x Ethernet (RGMII)
• 1x MMC/SD/SDIO interface
• 2x I2S Audio interface
• 24x GPIO, 4x PWM
• 4x UART, 2x SPI, 2x I2C
• OSM-MF Compliant, 476 Pin, RM 1,25 mm
