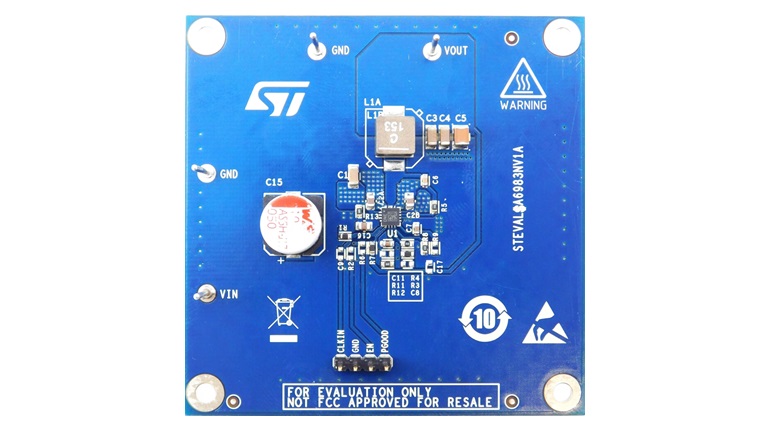

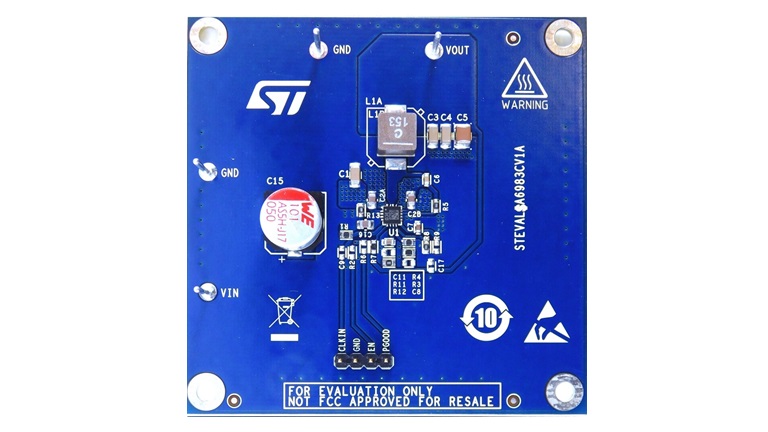

STMicroelectronics A6983

The A6983 is an easy-to-use synchronous monolithic step-down regulator capable of delivering up to 3 A DC to the load. The wide input voltage range makes the device suitable for a broad range of applications. The A6983 is based on peak current mode architecture and is packaged in a QFN16 (3 x 3 mm) with internal compensation thus minimizing design complexity and size. The “Low Consumption Mode” (LCM) is designed for applications active during car parking, so it maximizes the efficiency at the light-load with the controlled output voltage ripple. The “Low Noise Mode” (LNM) makes the switching frequency constant and minimizes the output voltage ripple overload current range, which meets the low noise application specification, such as for car audio. The A6983 allows the switching frequency to be selected in the 200 kHz to 2.3 MHz range with optional spread spectrum for improved EMC.

The EN pin provides enable/disable functionality. The typical shutdown current is 2 μA when disabled. As soon as the EN pin is pulled-up, the device is enabled, and the internal 1.3 ms soft-start takes place. The A6983 features a Power Good open collector that monitors the FB voltage. Pulse by pulse current sensing on both power elements implements an effective constant current protection, and thermal shutdown prevents thermal run-away.

Features

• AEC-Q100 qualified
• Operating temperature range: -40 °C to +150 °C for T_j
• 3.5 V to 38 V operating input voltage
• Load dump tolerant up to 40 V
• Output voltage from 0.85 V to V_IN
• 3.3 V and 5 V fixed output voltage versions
• 3 A DC output current
• 25 μA operating quiescent current
• Internal compensation network
• Two different versions: LCM for high efficiency at light-loads and LNM for noise-sensitive applications
• 2 μA shutdown current
• Internal soft-start
• High voltage V_IN compatible enable
• Output overvoltage protection
• Output voltage sequencing
• Thermal protection
• 200 kHz to 2.3 MHz programmable switching frequency
• Optional spread spectrum for improved EMC
• Power Good
• Synchronization to external clock for LNM devices
• QFN16 (3 x 3 mm) package

STSW-eDSim - fast and powerful electrical simulation software for SMPS and analog ICs

eDSim is a fast and powerful electrical simulation tool for SMPS and analog ICs, integrated in the eDesignSuite tool. It features enhanced accuracy and higher convergence speed for SMPS, enabling a simulation time 10-50x faster than the classical analog SPICE simulators.

The tool is a specific version of the SIMPLIS/SIMetrix simulation environment paired with ST model components, for a full electrical simulation with no limitation of nodes and circuit size.

Design your analog circuit using the eDesignSuite engine, display a preview of it in few seconds with full annotated schematic and BOM, and then run the electrical simulation through eDSim to get fast and accurate simulations and reliable design validation, thus reducing the effort and risks related to hardware prototyping.

With the eDSim tool you can also create your schematic from scratch using ST models or simulate your SMPS and analog ICs from a list of predefined ST application schematics - test benches, that you can partially modify according to your needs.

Software release 2024.07 is now available.

Features

• Built-in interface with eDesignSuite
• SMPS circuit full modeling using ST components
• Time domain simulation
• Control loop stability
• Predefined application use-case simulation
• Schematic editor for customization
• Waveform viewer with measurement capabilities
