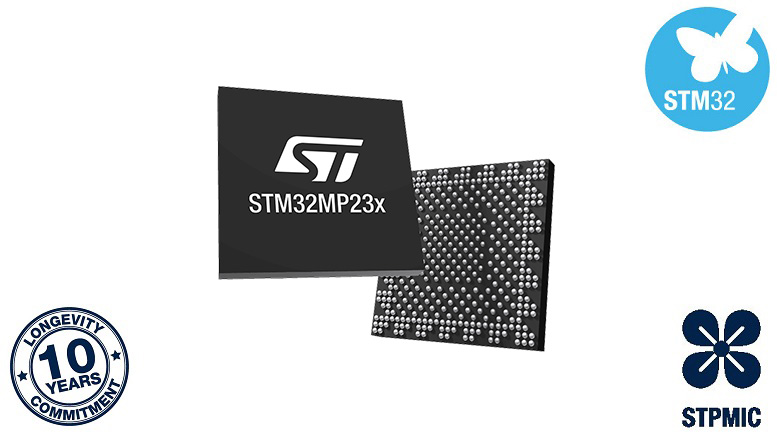

STMicroelectronics STM32MP23 MPU
STM32 Microprocessors family extension with dual ARM Cortex®-A35 at up to 1.5 GHz and Cortex®-M33 at 400 MHz
The STM32MP23 is a powerful and versatile microprocessor designed to enhance your embedded applications. With its advanced features and robust performance, it offers seamless integration and exceptional efficiency for a wide range of projects. Experience the perfect blend of innovation and reliability with the STM32MP23, your ideal solution for next-generation embedded systems.
Benefits
- Integrated Power Management
- Rich connectivity options and fantastic ecosystem.
Applications
- Industrial
- Medical
- Consumer
Get your free STM32MP257F Discovery Kit
We have a very limited number of evaluations boards up for grabs. Fill in the form below to submit your application.
Tools & software

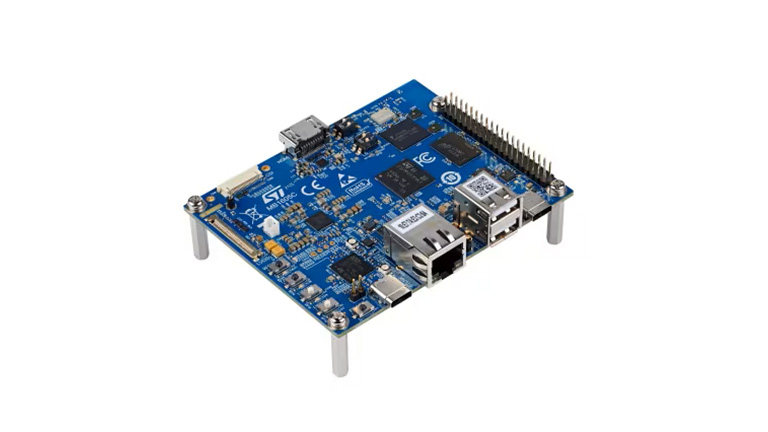

STM32MP257F-DK
Discovery kit with STM32MP257F MPU
The STM32MP257F-DK Discovery kit is designed as a complete demonstration and development platform for the STMicroelectronics STM32MP257FAK3 based on the Arm® Cortex® A35 and M33.
The product leverages the capabilities of STM32MP2 series microprocessors to allow users to develop applications using STM32 MPU OpenSTLinux Distribution software for the main processor (Arm® dual core Cortex®‑A35) and STM32CubeMP2 software for the coprocessor (Arm® Cortex®‑M33).
The product includes an ST-LINK embedded debug tool, LEDs, push-buttons, 1 Gbit/s Ethernet, one USB3 USB Type-C® PD, two stacked USB 2.0 HS Type-A, one LCD LVDS display connector, one HDMI connector, one camera connector, microSD™ card, Wi‑Fi® 802.11b/g/n, Bluetooth® Low Energy v4.1, and eMMC. To expand the functionality of STM32MP257F-DK, one GPIO expansion connector is also available for Raspberry Pi® shields.

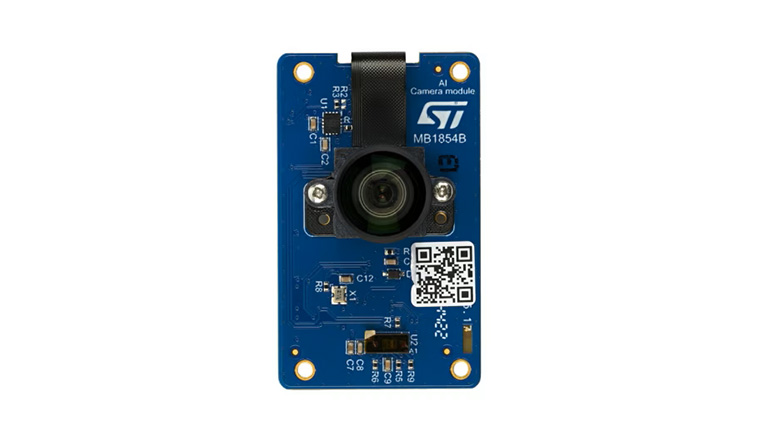

B-CAMS-IMX
Camera module bundle for STM32 boards
The B-CAMS-IMX camera module provides a compelling hardware set to handle multiple computer vision scenarios and use cases. It features a high-resolution 5‑Mpx RGB CMOS image sensor, an inertial motion unit, and a Time‑of‑Flight sensor. It can be used with any STM32 boards featuring a MIPI CSI-2® interface with a 22‑pin FFC connector to enable full-featured computer vision on STM32 microcontrollers and microprocessors easily.

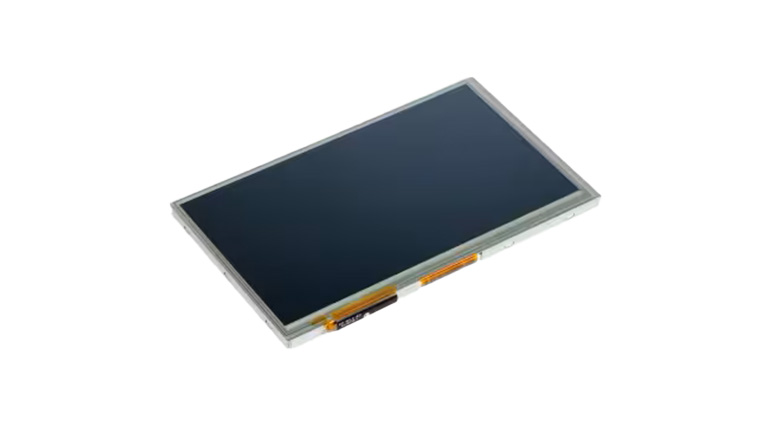

B-LVDS7-WSVGA
LVDS TFT LCD module for STM32 boards
The B-LVDS7-WSVGA module provides a 7.0” TFT LCD with capacitive touch panel. The interface mode is LVDS. LVDS cable and display stand are supplied.
STM32CubeMP2
STM32CubeMP2 Package for STM32MP2 series
The STM32CubeMP2 brings together, in a single package, all the generic embedded software components needed to develop applications on Arm® Cortex®-M33 microprocessors.
On top of the hardware, the STM32CubeMP2 solution is built around three levels of software components (level 0 for drivers, level 1 for middleware, level 2 for board demos), that interact easily with each other. It also includes two common components: CMSIS and Utilities, which interact with both levels.
STM32MP2Dev
STM32MP2 OpenSTLinux Developer Package
This Developer Package provides elements for the OpenSTLinux distribution (development on Arm® Cortex®-A processor). It includes the software development kit (SDK software development kit), based on Yocto SDK software development kit, for cross-development on an host PC.
It also includes the following pieces of software in source code: Linux® kernel, gcnano-driver, U-Boot, trusted firmware-A (TF-A), open source trusted execution environment (OP-TEE), external device tree.
Note that the application frameworks for the OpenSTLinux distribution are not available as source code in this package.
Related Documents |
Related Videos Video Player is loading. |
STMicroelectronics
STM32
STM32 MCUs and MPUs offer products combining very high performance, real-time capabilities, digital signal processing, low-power / low-voltage operation, and connectivity, while maintaining full integration and ease of development.
STMicroelectronics
STPMIC25
The STPMIC25 is a fully integrated power management IC designed for the STM32MP2x MPU's family applications requiring low power and high efficiency.
